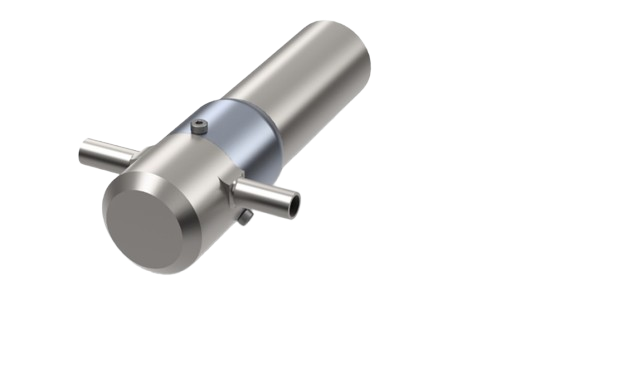

Hypergol Pump, 22mm High Flow

Product Type: Space Mobility & Servicing

Flight Works M-Series (Magnetic Drive) Gear Pumps offer the highest level of quality, reliability, and versatility in the Flight Works product catalog. The S-2232-M05XS09-HP model is designed for transfer of fluid at high pressure. This fully encapsulated model uses precision-machined parts, magnetic coupling mechanics, and a high-end brushless motor designed for spaceflight applications to produce exceptional performance reliably. The motor allows for simple control, with minimal power draw.

Details

Max Flow Rate

600 mL/min @ 5 psid, 400 mL/min @ 300 psid (fluid and temperature dependent)
Differential Pressure (Max)

300 psid
Proof / Burst Pressure

525 psig / 875 psig
NPSHr

8 psi above saturation pressure (fluid dependent)
Mass (Max)

250 g (with standard motor leads)
Wetted Materials

CRES 302/304, CRES 304L, CRES 316, CRES 420, CRES 440C, CRES A286, Inconel 625, Silicon Carbide
Qualified Operating Temperature

+5 °C to +40 °C
Non-Operational Temperature

-15 °C to +60 °C
Design Environments

GEVS 14.1 grms , vacuum; hall sensors (COTS) not tested for radiation tolerance
Control Optoions

Back-EMF feedback

Features

Bi-Propellant Space Pump, Fully Welded Flow: 600 – 400 mL/min, up to 300 psid
Permissible Fluids: Hydrazine, NTO/MONs, isopropyl alcohol

Applications
