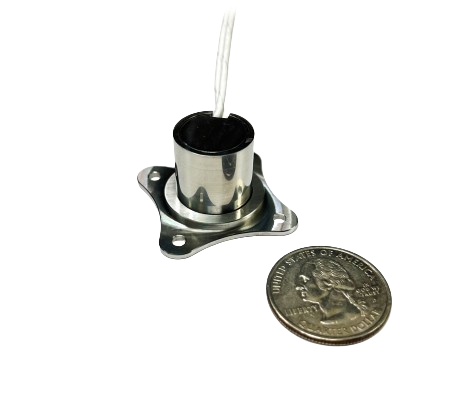

Small Solenoid Valve (S-SV-S-12)

Flight Works SV-Series (Solenoid) valves offer the highest level of quality, reliability, and versatility in the Flight Works product catalog. The S-SV-S-12 model uses precision-machined parts and is designed for spaceflight applications to reliably produce exceptional performance. The valve is easily controlled with minimal power draw, while the tight tolerances of internal components raise the performance to optimal levels.

This device is a normally closed solenoid valve that has been designed for spaceflight applications. It features a level of versatility that would also allow for use in a wide field of applications with vibration or low atmospheric pressure/vacuum.

Details

ESEOD	0.009 inches min., Cd = 0.65
Operating Pressure	500 psig
Proof / Burst Pressure	750 psig/ 1250 psig
Mass (Max)	30 g
Seals	static (no dynamic seals)
Operating Voltage	9 – 12.6 VDC
Holding Voltage	3 – 6 VDC
Power Consumption	8 W max, 1.4 W holding voltage
Qualified Environments	GEVS 10grms , previously qualification tested at 53.6 grms radial vibration, 29.6 grms axial (bracket specific)
Subject to	U.S. Patent No 10,197,165 and Patent Pending; manufactured under NASA License Agreements
